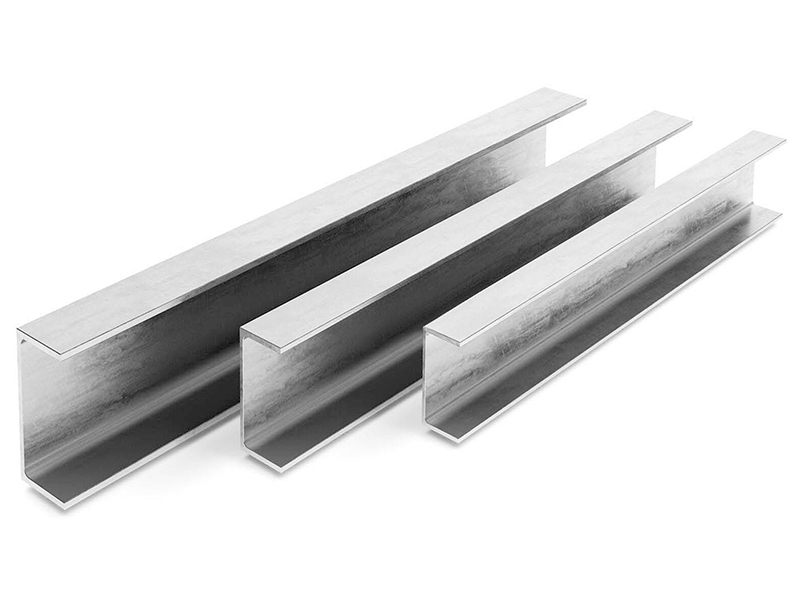

ESF manufacture a wide range of structural C purlins and nesting channel for industrial buildings, garages, verandahs, and carports, in fact anywhere that strong, reliable steel framing is required.
Manufactured from quality galvanised steel, this is a fully integrated system allowing for flexible design options.
Supplied plain or punched, galvanised purlins are manufactured from high tensile steel for increased strength, reduced weight, and a long service life.
|
Section C |
Retail $/Meter |
Thickness |
C Purlin |
Kg's/Mtr |
||
|
A |
E |
F |
AS1397 |
|||
|
10012 |
$8.85 |
1.2 |
100 |
51 |
12.5 |
2.07 |
|
10015 |
$8.88 |
1.5 |
100 |
51 |
12.5 |
2.58 |
|
10019 |
$11.26 |
1.9 |
100 |
52 |
12.5 |
3.25 |
|
15015 |
$11.97 |
1.5 |
152 |
64 |
13.5 |
3.54 |
|
15019 |
$15.21 |
1.9 |
152 |
64 |
15.0 |
4.46 |
|
15024 |
$19.89 |
2.4 |
152 |
64 |
18.0 |
5.62 |
|
20015 |
$15.27 |
1.5 |
202 |
76 |
20.5 |
4.44 |
|
20019 |
$19.44 |
1.9 |
202 |
76 |
21.5 |
5.68 |
|
20024 |
$24.73 |
2.4 |
202 |
76 |
22.5 |
7.15 |
|
25019 |
$22.12 |
1.9 |
254 |
76 |
18.5 |
6.43 |
|
25024 |
$28.10 |
2.4 |
254 |
76 |
20.5 |
8.10 |
|
30024 |
$34.79 |
2.4 |
300 |
96 |
24.5 |
10.01 |
STOCKED UN-PUNCHED C PURLINS:
C10015 – 6100 Length = $55.00
All other Purlins fabricated to order.
C15019 – 6100 Length = $92.00
C20019 – 7500 Length = $145.00
|
Nesting Channel |
Thickness |
Retail $/Meter |
|
N10012 |
1.2mm |
$9.00 |
|
N10015 |
1.5mm |
$10.76 |
|
N10019 |
1.9mm |
$12.92 |
|
N15015 |
1.5mm |
$13.74 |
|
N15019 |
1.9mm |
$17.46 |
|
N15024 |
2.4mm |
$22.84 |
|
N20019 |
1.9mm |
$22.32 |
|
N20024 |
2.4mm |
$28.39 |
Custom lengths and Punched Purlins available via special order.
|
Item |
Thickness |
Grade |
Stock Length |
Retail $/Length |
|
22mm Ceiling Batten |
0.42mm |
G550 |
6100 |
$9.50 |
|
30 x 30 Trim Angle |
1.15mm |
G500 |
6100 |
$30.60 |
|
40 x 40 Trim Angle |
1.15mm |
G500 |
6100 |
$44.20 |
|
76mm Stud Material |
0.75mm |
G550 |
2400 |
$12.42 |
|
0.95mm |
G550 |
2400 |
$13.61 |
|
|
89mm Stud Material |
0.75mm |
G550 |
2400 |
$12.84 |
|
0.95mm |
G550 |
2400 |
$14.16 |
Steel Purlins and Trim Material can be delivered Door to Door in the Greater Brisbane, Gold Coast and Sunshine Coast areas or Collect from our Carole Park Factory.
